We The People Pathfinder BMX Frame

Description

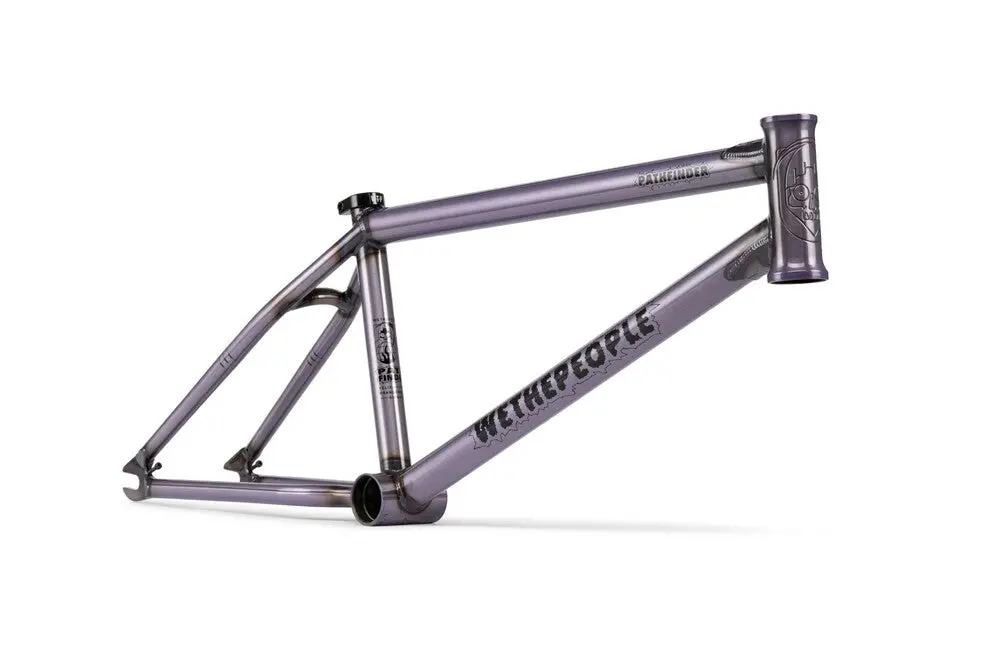

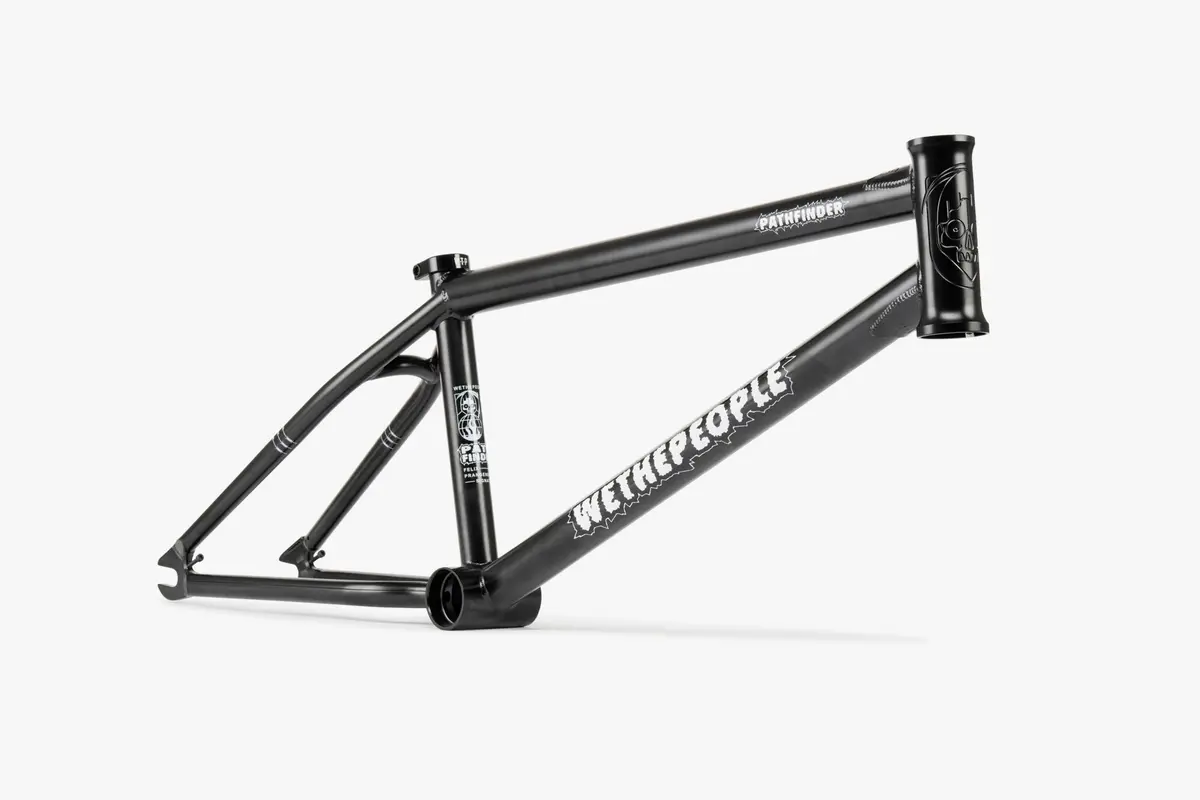

Felix Prangenberg’s signature Pathfinder frame is a product that reflects the originality, progression and power of felix’s riding. Boasting a short 13” chainstay and a taller 9.666” standover height, the pathfinder frame utilizes ground-breaking offset thickness chainstay and bottom bracket shell, to strengthen the frame in areas susceptible to grind damage. Now with brand new graphics, cnc detailing on the head tube and bottom bracket shell, the pathfinder also now comes in a scaled down 20.5″ option for the rider wanting a more compact frame. Includes lifetime guarantee. SPECIFICATIONS:

TUBING:
butted, seamless 4130 chromoly tubing japanese

TOPTUBE:
20.75″ / 21″ TT

CHAINSTAY LENGTH:
12.95″ slammed, 13.2″ centered

ANGLES:
HT: 76 °, ST: 71°

BOTTOM BRACKET:
type: mid-bb, width: 74mm, height: 11.7 “, cnc machined and heat-treated, offset thickness for grind resistance

HEADTUBE:
taller 127mm shape, cnc machined and heat-treated, integ. h / set,

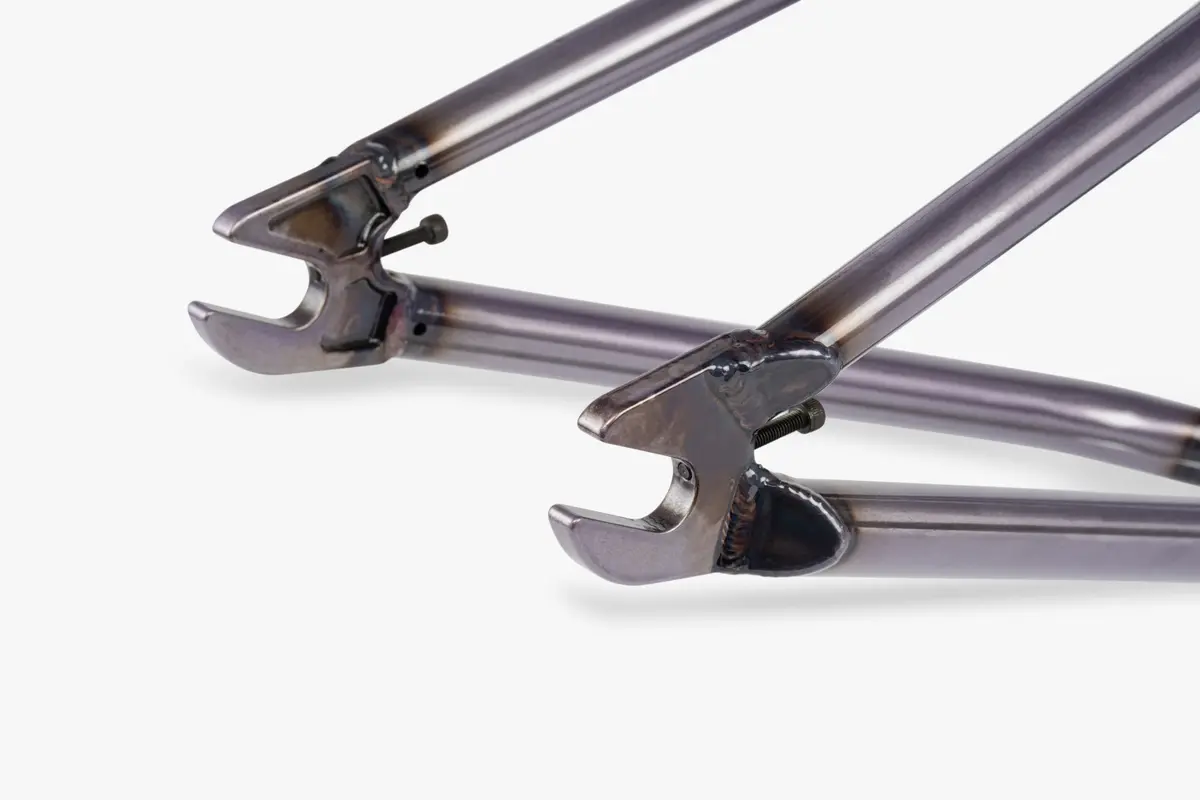

DROPOUTS:
6mm, CNC machined, 4130 crmo

SPECIALS:

brakeless frame

extruded offset thickness dent resistant chainstays

super strong offset thicness bottom bracket shell

 top and down tube gussets

super steep 76 degree headtube

wider rear triangle allows clearance for a 2.5 ” tire

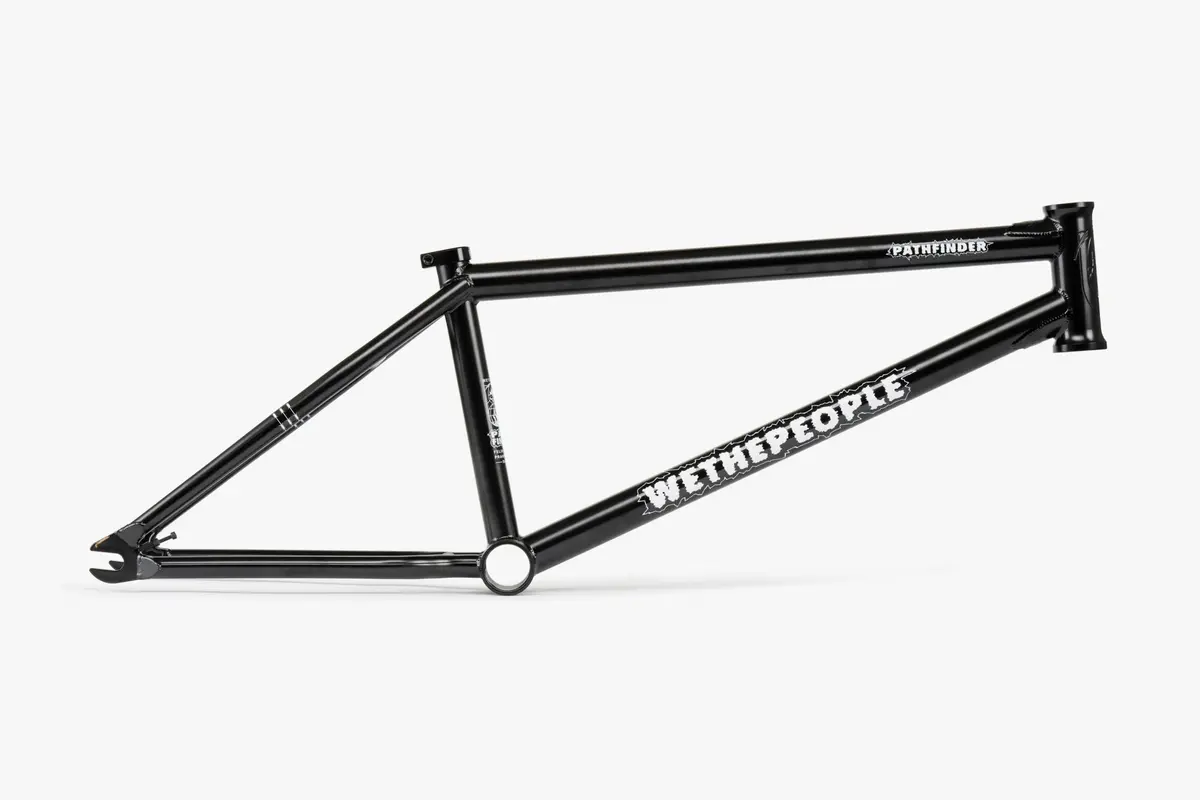

COLORS:
glossy black ed, sunburst green

WEIGHT:
2.36kg/5.2lbs (21″)



Top Tube:  20.75″ or 21″

Chain Stay: 12.95″ – 13.5″

Head Tube Angle: 76°

Seat Tube Angle: 71°

Bottom Bracket Height: 11.7”

Stand Over Height: 9.35″
