Description

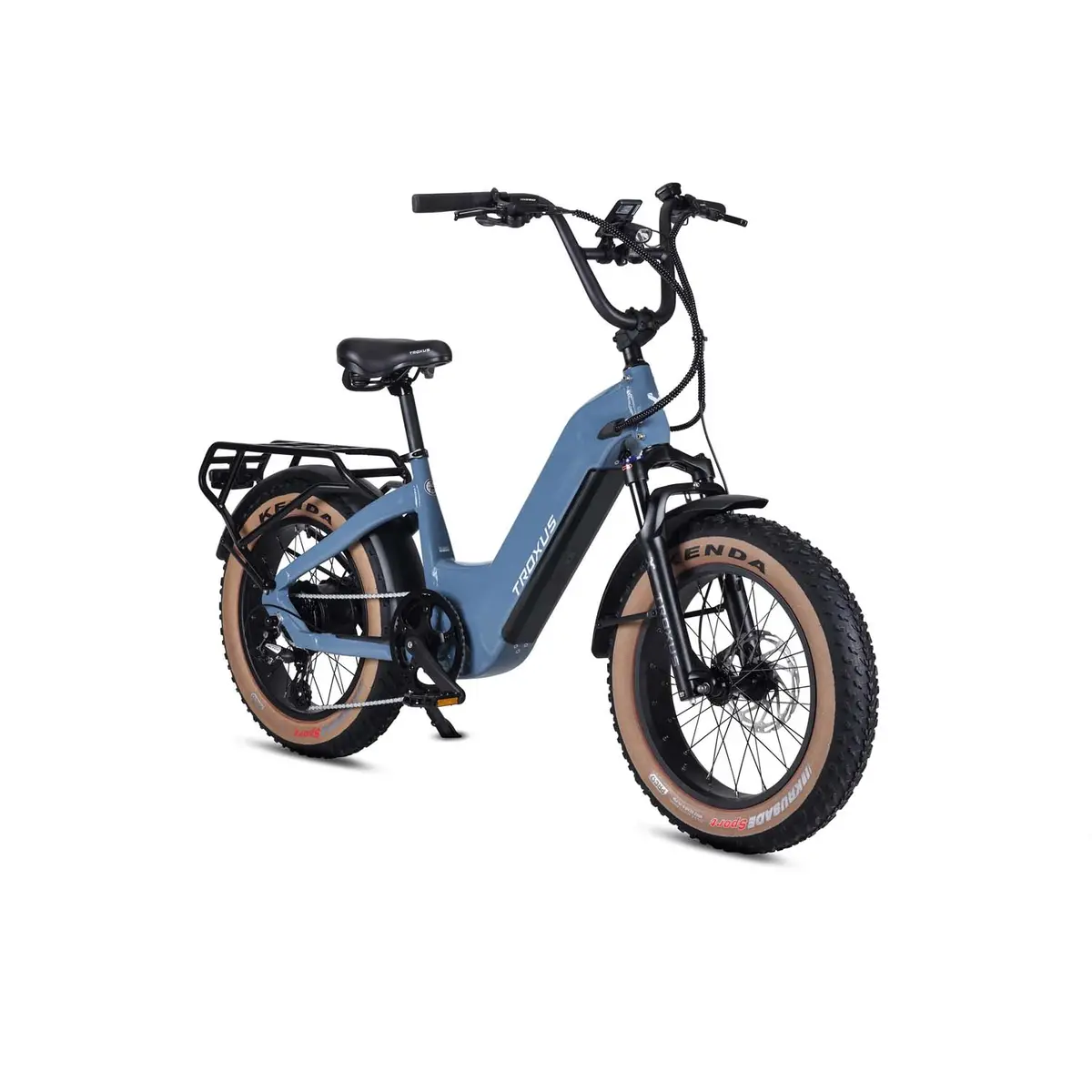

Lynx Plus 20 E-bike is Small but Mighty!
Mini cargo hauler with 400 pounds of load carrying capacity, with its ultra-strong semi-integrated rear rack. MIK-compatible rear rack capable of carrying up to 100 pounds of cargo or passengers.
Power to Climb and Roam
Bafang® 750 Watt (sustained) hub-drive motor with exceptional 86Nm torque to get up the steepest hills.
Safety and Reliability Built In
UL-2849 certified with 960 Wh long-range battery capacity for all-day fun.
Control, Convenience, and Safety
Bluetooth color display with integrated lights, turn signals, and switchable between torque and cadence sensors.
- Most Troxus models are equipped with components that allow for switching between Torque and Cadence modes.
- Easily switch between modes with a press of the “+” button
- Torque mode provides a smoother, more natural riding feel and extends battery life while in pedaling mode.
- Designed to fully use the rider’s power output.
- Cadence mode allows for riding and less pedaling effort / detects small crankarm rotations (1/4 to 1/2 turn).
- Maintain a constant speed with very little pedaling (ghost pedaling)
- Cadence mode also functions well under normal active pedaling.
- Performance close to a Torque sensor mode.
- Throttle assist works in both Torque and Cadence modes.
- On the basic interface display, press the “+” button for a few seconds to switch between Torqur and Cadence modes.
- Switching to Cadence sensor mode will display the cadence mode icon.
- No “Cyclist” icon means that the torque sensor mode has been selected.
SPECS
| E-system | |
| Motor | Ananda 48V/750W Hub-Drive Motor, 86Nm Max. Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells |
| Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging |
| Throttle | Thumb Throttle on Handlebar |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 3A / 100-240V Input / 54.6V Output |
| Lights | Front Light, Rear Light w/ Turn and Hazard Signals |
| Controller | 48Vx22A/12V |
| Components | |
| Frame | 6061-T6 Aluminum Step-Thru Cargo Frame |
| Fork | Front Suspension Fork, 80mm Travel |
| Chain | KMC® 1/2″x3/32″ |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano® 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket Set | Square Taper Sealed Bearings, Torque and Cadence Sensors Included |
| Tires | KENDA® 20″x4.0″, w/ Anti-Puncture K-Shield |
| Front Hub | Alloy, 36H, 110mm, 3/8″ Axle |
| Rear Hub | Bafang® 48V 750W/ 28 MPH. 86Nm |
| Rims | Alloy Double Wall, 20″x4.0″ w/ Eyelets |
| Spokes | Stainless 13G. Front / 12G. Rear |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 180mm / 160mm |
| Saddle | Troxus Comfort w/ Back Handle |
| Seat Post | Alloy, 30.9x400mm, Adjustable |
| Seat-Post Clamp | Alloy, 35mm w/ Quick Release |
| Stem | Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension |
| Handlebar | Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise |
| Grips | Ergonomic Comfort |
| Pedals | 9/16″ Alloy Platform with Reflectors |
| Headset | Threadless, Locking Internal 1-1/8″ |
| Speed & Range & Weight & Supports | |
| Max Speed | Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist |
| Range | Up To 90 Miles Per Charge |
| Weight Limit | Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs |
| Net Weight | 77.2 lbs |
| Rack | Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack |
| Fenders | Alloy, 20″x4.0″ w/ Alloy Hardware |
| Kickstand | Adjustable Side Kickstand |
| Packaged | Above All Accessories Are Included. |
