Silva 70P Compact Marine Compass for Small Boats

Description

• Description
• Features & Specs

•

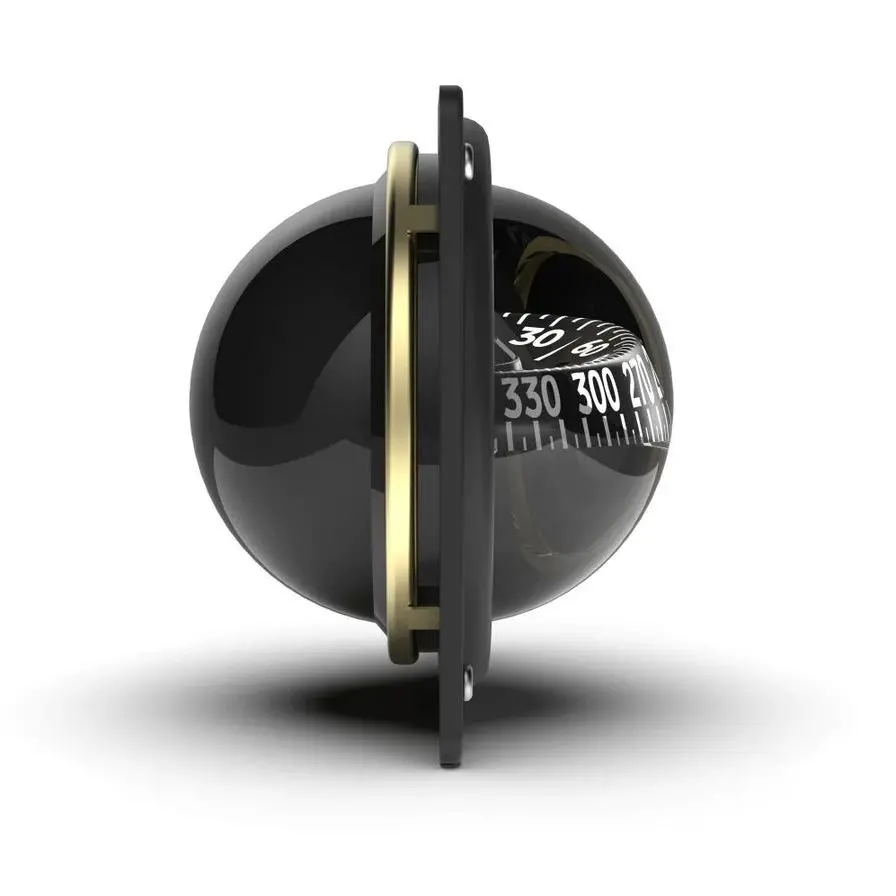

  70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions.
  The compass handles unlimited slope of the keel line and a 30º heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax errors. With a main steering scale on the horizontal part and direct reading on the vertical edge,
  70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size (70 mm) makes it suitable for smaller boats.
• • DOUBLE SCALES: Can be read from front and above
  • Accuracy: +/- 17.8mils/1°
  • Apparent card diameter: 70mm
  • Built-in compensator: Optional
  • Card type: Cone
  • Compatibility: Kayaks, powerboats, sailboats
  • Heeling Angle: Roll: 30° Pitch: 30°
  • Illumination:  Optional
  • Lubber lines:  Centre
  • Materials: Acrylic, PC/ABS
  • Mounting: Bulkhead
  • Mounting angle: +10° to +100
  • Sapphire jewel bearing for friction-free movement of the compass needle: Yes
  • Size: 95×72 mm
  • Temperature operating range: -10 to +70 °C
  • Variant: Magnetic North
  • Water resistant: Yes
  • Weight: 344g
