Complete 900W Splyt Stator System Featuring Integrated Regulator, Dual-Battery Isolation, and Flywheel Removal Tool — Compatible with Polaris Ranger, RZR, and Sportsman Models (2013–2025)

Description

SKU: RMS900-108166

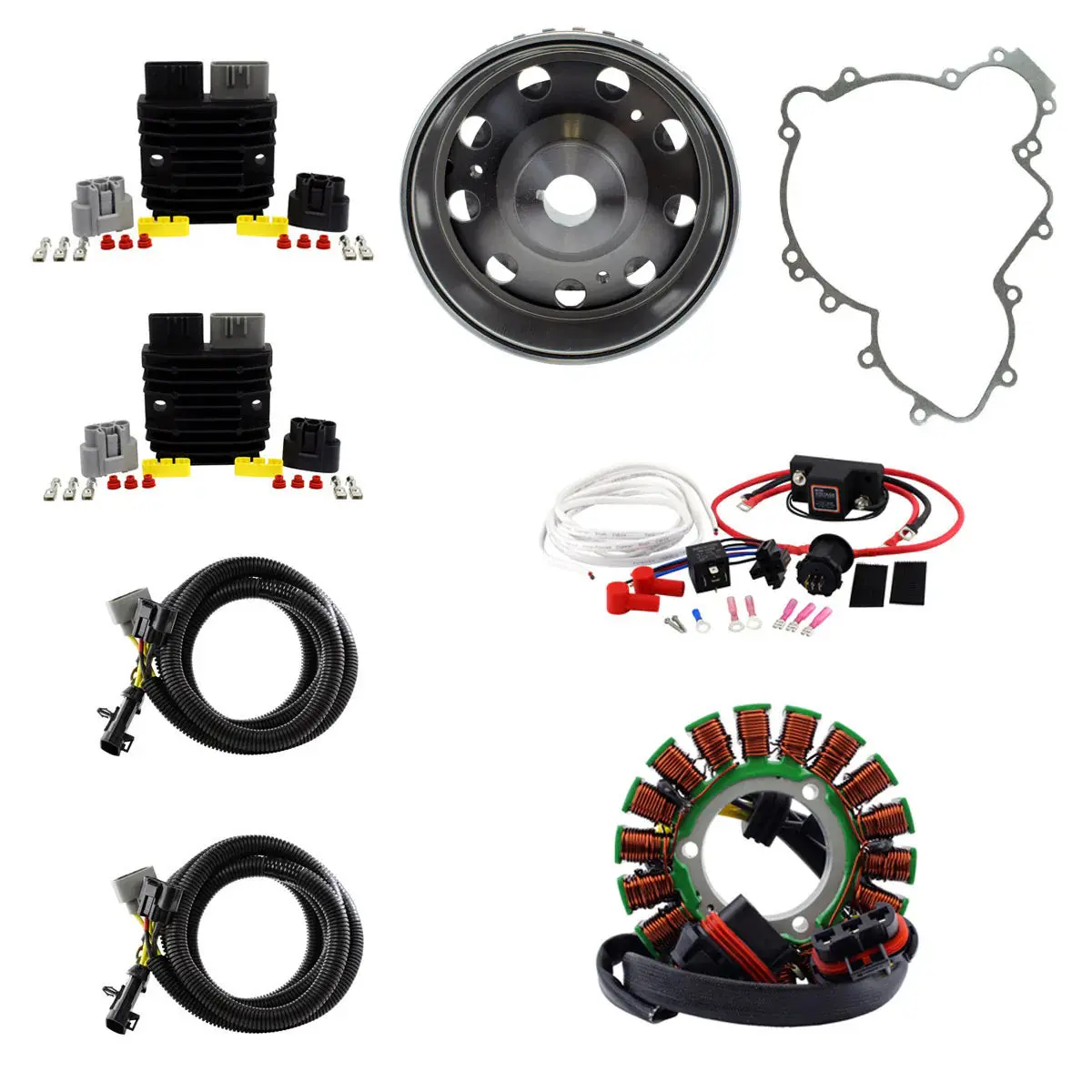

This kit includes:

• Dual output stator
• Flywheel
• Flywheel Puller
• Two SERIES voltage regulators
• Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors
• Complete instructions for voltage regulator relocation
• RMSTATOR UTV Complete Dual Battery Isolator Connection and Metering Kit

Why use the SPLYT Technology?

As featured by Dirt Trax Television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability.

SERIES Voltage Regulation

This system uses a new type of voltage regulator called a SERIES regulator. Rather than shunting excess power to ground like a typical regulator, it protects the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from passing on. This type of voltage regulation generates less heat because current from the stator is prevented from flowing through the regulator.

Ultimate reliability

With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output.

Better design

Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two completely separate three-phase coil windings. Each of these two windings then produces half of the power of the stock stator lowering the temperature in each individual coil.

More available power

If you are installing a lot of accessories and electronics on your vehicle, like extra lighting, stereos or a winch, the SPLYT kit is available with an improved flywheel designed to increase power output from 650 Watts to 900 Watts.

Easy to install

All parts use a Plug-and-Play design, just like the original OEM ones, so no special tool or knowledge is needed to install this system.

Harnesses included

Relocation wiring harnesses allow to relocate the regulators anywhere on your vehicle to get better air flow and easier access.

Solve your Polaris RZR & Sportsman charging system issues today, once and for all, with RMSTATOR!

IMPORTANT NOTICE: This kit includes two wiring harness according to Polaris recal # Z-16-01-C (OEM # 2206620, 2206367,2206473). We strongly suggest you to relocate both of your regulators to make sure they do not wear out prematurely due to mud, dust or rocks.

All item pictures are accurate, matching exactly what you will receive.

RMSTATOR UTV Complete Dual Battery Isolator Connection and Metering Kit

As modern UTV’s are improving every year, it is increasingly common to add accessories to them like stereos, lights, and winches. These are great upgrades, until you are stuck with a dead battery and can’t start the engine! RMSTATOR comes to the rescue with the best and most complete kit available to add a second battery to your UTV to power your accessories and monitor the charge of both batteries right from your dashboard!

The addition of a second battery to your vehicle to power your accessories allows you to safely use them all day without discharging your primary starting battery. If the voltage drops too low on your second battery, it will disconnect and isolate it from the main battery safely and automatically. When the motor is started, the secondary battery will be reconnected and recharged.

Our included LED dual voltmeter installs on your dashboard, and lets you easily monitor the voltage of both batteries. The included wiring harness and relay allow the voltmeter to turn on and off with your keyswitch.

Everything you need for a complete installation is included!

Includes:

• Dual battery isolator relay
• 12” Black ground battery cable with terminal lugs
• 12” Red positive battery cable with terminal lugs
• 18” Red positive battery cable with terminal lugs
• Dual Red LED voltmeter (1.4” OD x 1” depth)
• Keyswitch voltmeter activation relay with socket and wires
• 96” wire harness for dual voltmeter connection to relay
• Terminals and connectors

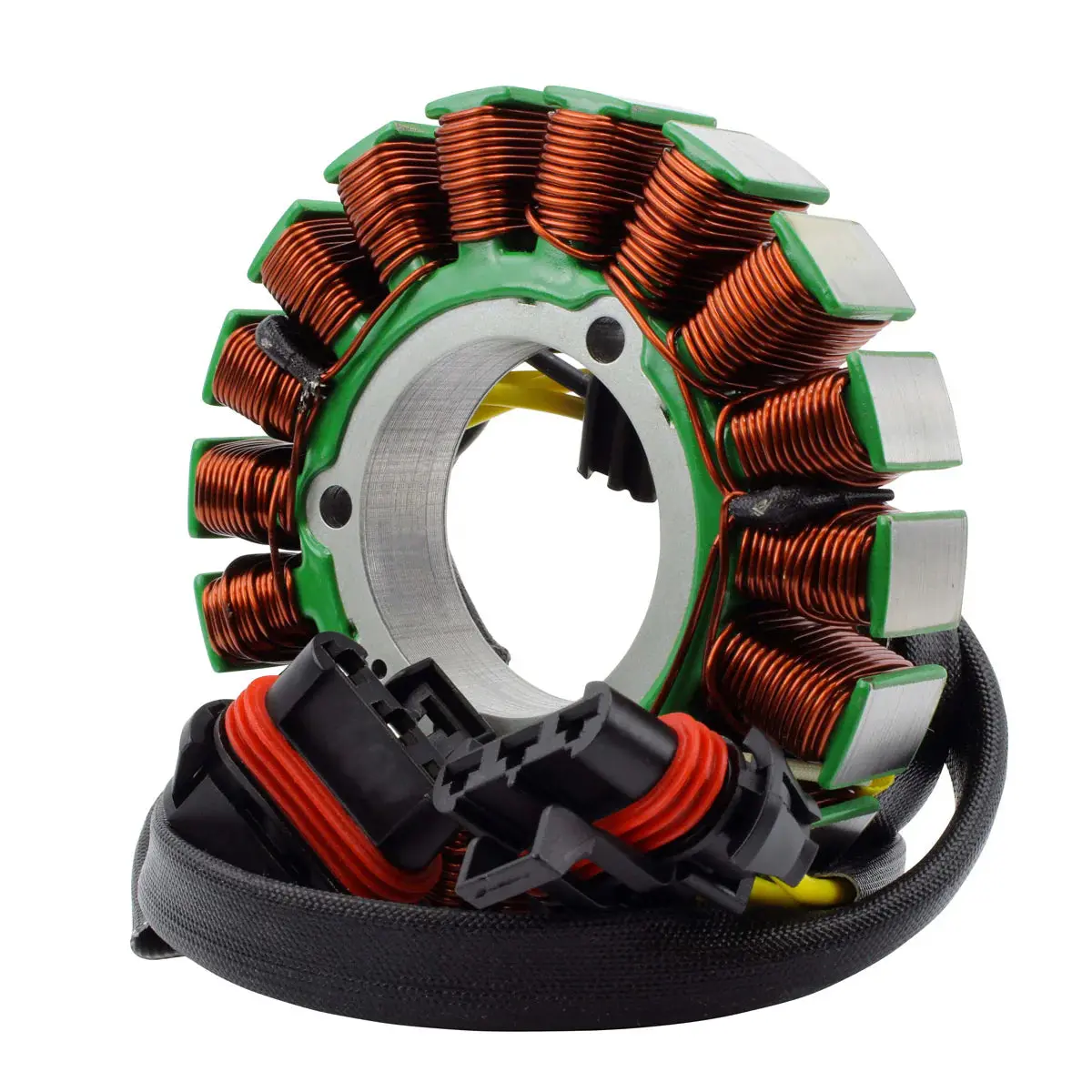

Dual Stator Dimensions
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 26 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm & 550 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18
Wire to wire resistance :
Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +-20%

Regulator Dimensions
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20º to 85º

Relocation Harness Dimensions
Wires length : 2400 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 2

Complete Dual Battery Isolator Connection and Metering Kit

• Dual battery isolator relay
• 12” Black ground battery cable with terminal lugs
• 12” Red positive battery cable with terminal lugs
• 18” Red positive battery cable with terminal lugs
• Dual Red LED voltmeter (1.4” OD x 1” depth)
• Keyswitch voltmeter activation relay with socket and wires
• 96” wire harness for dual voltmeter connection to relay
• Terminals and connectors

  Flywheel Dimensions:
  Exterior Diameter: 140.6 mm
  Interior Diameter: 127.8 mm
  Interior Diameter Center Housing: 22.4 mm
  Exterior Diameter Center Housing: 50 mm

  Flywheel Puller Dimensions:
  Exterior Diameter: 57 mm
  Interior Diameter: 48.3 mm
  Exterior Diameter Center Housing: 20 mm

Before installing your new stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.

Battery Isolator installation instruction :

Download our complete installation instruction (PDF)

SPLYT System installation instructions :

Download our complete installation instruction (PDF)

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Fitment:

2025 Polaris RZR 1000 XP 2025 Polaris RZR 4 1000 XP 2025 Polaris Sportsman 1000 XP 2025 Polaris Scrambler 1000 XP 2025 Polaris Scrambler 1000 XP Euro 2025 Polaris Ranger 1000 Full Size 2025 Polaris Ranger 1000 Full Size 2025 Polaris Sportsman XP 1000 Touring 2025 Polaris Sportsman 850 2025 Polaris Ranger Crew 570 Full Size 2025 Polaris RZR 900 Trail 2025 Polaris RZR 900 Trail S 2025 Polaris RZR 900 Trail Ultimate 2025 Polaris RZR 1000 Trail S 2025 Polaris RZR 1000 Trail S Ultimate 2025 Polaris Ranger 570 Full Size 2024 Polaris RZR 1000 XP 2024 Polaris RZR 4 1000 XP 2024 Polaris Scrambler 850 2024 Polaris Sportsman 1000 XP 2024 Polaris Scrambler 1000 XP 2024 Polaris Sportsman 850 High Lifter 2024 Polaris Sportsman 570 6X6 2024 Polaris Scrambler 1000 XP Euro 2024 Polaris Ranger 1000 Full Size 2024 Polaris Sportsman XP 1000 Touring 2024 Polaris Sportsman 850 2024 Polaris Sportsman XP 1000 High Lifter 2024 Polaris Ranger Crew 570 Full Size 2024 Polaris Sportsman 570 Touring EPS 2024 Polaris Sportsman 850 Touring EPS 2024 Polaris RZR 900 Trail 2024 Polaris RZR 900 Trail S 2024 Polaris RZR 900 Trail Ultimate 2024 Polaris RZR 1000 Trail S 2024 Polaris Ranger 570 Full Size 2023 Polaris RZR 1000 XP 2023 Polaris RZR 4 1000 XP 2023 Polaris Sportsman 570 Touring 2023 Polaris Ranger 570 EFI 2023 Polaris Scrambler 850 2023 Polaris Ranger 1000 XP 2023 Polaris Sportsman 1000 XP 2023 Polaris Scrambler 1000 XP 2023 Polaris Sportsman 850 High Lifter 2023 Polaris General 1000 2023 Polaris Sportsman 1000 Touring 2023 Polaris Sportsman 570 6X6 2023 Polaris Scrambler 1000 XP Euro 2023 Polaris Ranger 1000 Full Size 2023 Polaris Sportsman XP 1000 Touring 2023 Polaris Sportsman 850 2023 Polaris Sportsman XP 1000 High Lifter 2023 Polaris Ranger Crew 570 Full Size 2023 Polaris General 1000 XP 2023 Polaris General 1000 XP4 2023 Polaris Sportsman 850 Touring EPS 2023 Polaris RZR 900 Trail 2023 Polaris RZR 900 Trail S 2023 Polaris RZR 1000 Trail S 2023 Polaris Ranger 570 Full Size 2022 Polaris RZR 1000 XP 2022 Polaris RZR 4 1000 XP 2022 Polaris Ranger 500 EFI 2022 Polaris Ranger 570 EFI 2022 Polaris Scrambler 850 2022 Polaris Sportsman 1000 XP 2022 Polaris Scrambler 1000 XP 2022 Polaris Sportsman 850 High Lifter 2022 Polaris General 4 1000 2022 Polaris General 1000 2022 Polaris RZR 1000 RS1 EFI F/C 2022 Polaris Sportsman 570 6X6 2022 Polaris Scrambler 1000 XP Euro 2022 Polaris Sportsman XP 1000 Touring 2022 Polaris Sportsman 850 2022 Polaris Sportsman XP 1000 High Lifter 2022 Polaris Ranger Crew 570 Full Size 2022 Polaris General 1000 XP 2022 Polaris General 1000 XP4 2022 Polaris RZR 570 Trail 2022 Polaris Sportsman 850 Touring EPS 2022 Polaris RZR 900 Trail 2022 Polaris RZR 900 Trail S 2022 Polaris RZR 900 Trail Ultimate 2022 Polaris RZR 1000 Trail S 2022 Polaris Ranger 570 Full Size 2021 Polaris RZR 1000 XP 2021 Polaris RZR 4 1000 XP 2021 Polaris RZR 1000 2021 Polaris RZR 4 900 XP Turbo 2021 Polaris Ranger 500 EFI 2021 Polaris Sportsman 570 Touring 2021 Polaris Ranger 570 EFI 2021 Polaris Ranger Crew 570 EFI 2021 Polaris Scrambler 850 2021 Polaris Sportsman 1000 XP 2021 Polaris Scrambler 1000 XP 2021 Polaris Sportsman 850 High Lifter 2021 Polaris General 4 1000 2021 Polaris General 1000 2021 Polaris RZR 1000 RS1 EFI F/C 2021 Polaris Sportsman 570 6X6 2021 Polaris Scrambler 1000 XP Euro 2021 Polaris RZR 900 XP Turbo S 2021 Polaris Sportsman XP 1000 Touring 2021 Polaris Sportsman 850 2021 Polaris Sportsman XP 1000 High Lifter 2021 Polaris Ranger Crew 570 Full Size 2021 Polaris General 1000 XP 2021 Polaris General 1000 XP4 2021 Polaris RZR 570 Trail 2021 Polaris RZR 1000 XP Turbo 2021 Polaris Sportsman 850 Touring EPS 2021 Polaris RZR 900 Trail 2021 Polaris RZR 900 Trail S 2021 Polaris RZR Turbo R 4 2021 Polaris Ranger 570 Full Size 2020 Polaris RZR 570 EFI 2020 Polaris RZR 1000 XP 2020 Polaris RZR 900 2020 Polaris RZR 4 1000 XP 2020 Polaris RZR 1000 2020 Polaris RZR 4 900 XP Turbo 2020 Polaris RZR 900 XP Turbo 2020 Polaris Ranger 500 EFI 2020 Polaris Ranger 570 EFI 2020 Polaris Ranger Crew 570 EFI 2020 Polaris Scrambler 850 2020 Polaris Sportsman 1000 XP 2020 Polaris Scrambler 1000 XP 2020 Polaris Sportsman 850 High Lifter 2020 Polaris General 4 1000 2020 Polaris General 1000 2020 Polaris RZR 1000 RS1 EFI F/C 2020 Polaris Scrambler 1000 XP Euro 2020 Polaris Sportsman 570 EPS X2 (Europe) 2020 Polaris Sportsman 570 EPS X2 2020 Polaris Sportsman XP 1000 Touring 2020 Polaris Sportsman 850 2020 Polaris Sportsman XP 1000 High Lifter 2020 Polaris Ranger Crew 570 Full Size 2020 Polaris RZR 1000 XP Turbo 2020 Polaris Sportsman 850 Touring EPS 2020 Polaris RZR 900 Trail S 2020 Polaris RZR Turbo R 4 2020 Polaris Ranger 570 Full Size 2019 Polaris RZR 570 EFI 2019 Polaris RZR 1000 XP 2019 Polaris RZR 900 2019 Polaris RZR 4 1000 XP 2019 Polaris RZR 1000 2019 Polaris RZR 4 900 XP Turbo 2019 Polaris RZR 900 XP Turbo 2019 Polaris Ranger 500 EFI 2019 Polaris Ranger 900 XP 2019 Polaris Sportsman 570 2019 Polaris Ranger 570 EFI 2019 Polaris Ranger Crew 570 EFI 2019 Polaris Scrambler 850 2019 Polaris ACE 570 EFI 2019 Polaris ACE 500 2019 Polaris ACE 900 2019 Polaris Sportsman 1000 XP 2019 Polaris Scrambler 1000 XP 2019 Polaris Sportsman 850 High Lifter 2019 Polaris Sportsman 850 Touring SP 2019 Polaris General 4 1000 2019 Polaris General 1000 2019 Polaris Ranger Crew 900 XP 2019 Polaris Sportsman 1000 XP Tractor 2019 Polaris Sportsman 1000 Touring Tractor 2019 Polaris RZR 1000 RS1 EFI F/C 2019 Polaris Sportsman 570 6X6 2019 Polaris Sportsman 570 EFI UTE 2019 Polaris Sportsman 570 X2 EPS 2019 Polaris Sportsman 570 EPS 2019 Polaris Sportsman 570 SP Touring EFI F/C 2019 Polaris Sportsman 570 Touring EPS EFI F/C 2019 Polaris Sportsman 570 HD EFI F/C 2019 Polaris Sportsman 570 X2 EPS Tractor EFI F/C 2019 Polaris Sportsman 570 SP EFI F/C 2019 Polaris Sportsman 450 EFI F/C 2019 Polaris Scrambler 1000 XP Euro 2019 Polaris Sportsman 570 EPS X2 (Europe) 2019 Polaris Sportsman 570 EPS X2 2019 Polaris Sportsman XP 1000 Touring 2019 Polaris Sportsman XP 1000 High Lifter 2019 Polaris Sportsman 850 SP 2019 Polaris Ranger Crew 570 Full Size 2019 Polaris Ranger 570 Full Size 2019 Polaris Sportsman 1000 XP ZUG 2018 Polaris RZR 570 EFI 2018 Polaris RZR 1000 XP 2018 Polaris RZR 900 2018 Polaris RZR 4 1000 XP 2018 Polaris RZR 1000 2018 Polaris RZR 4 900 XP Turbo 2018 Polaris RZR 900 XP Turbo 2018 Polaris Ranger 500 EFI 2018 Polaris Ranger 900 XP 2018 Polaris Sportsman 570 2018 Polaris Sportsman 570 Touring 2018 Polaris Ranger 570 EFI 2018 Polaris Ranger Crew 570 EFI 2018 Polaris RZR 570 EPS 2018 Polaris Sportsman X2 570 2018 Polaris Scrambler 850 2018 Polaris ACE 570 EFI 2018 Polaris ACE 500 2018 Polaris ACE 900 2018 Polaris Ranger 900 2018 Polaris Sportsman 450 HO 2018 Polaris Sportsman 1000 XP 2018 Polaris Scrambler 1000 XP 2018 Polaris Sportsman 850 High Lifter 2018 Polaris Sportsman 850 Touring SP 2018 Polaris RZR 4 900 2018 Polaris General 4 1000 2018 Polaris General 1000 2018 Polaris Ranger Crew 1000 XP 2018 Polaris Ranger Crew 900 XP 2018 Polaris Sportsman 1000 High Lifter 2018 Polaris Sportsman 1000 XP Tractor 2018 Polaris Sportsman 1000 Touring 2018 Polaris Sportsman 1000 Touring Tractor 2018 Polaris RZR 1000 RS1 EFI F/C 2018 Polaris Scrambler 1000 XP Euro 2018 Polaris Sportsman 570 EPS X2 2018 Polaris Sportsman 850 SP 2018 Polaris Ranger Crew 570 Full Size 2018 Polaris Ranger 1000 XP High Lifter Edition 2018 Polaris Ranger 570 Full Size 2018 Polaris Sportsman 1000 XP ZUG 2017 Polaris RZR 570 S 2017 Polaris Farmhand 450 2017 Polaris RZR 570 EFI 2017 Polaris RZR 1000 XP 2017 Polaris RZR 900 2017 Polaris RZR 4 1000 XP 2017 Polaris RZR 1000 2017 Polaris RZR 4 900 XP Turbo 2017 Polaris RZR 900 XP Turbo 2017 Polaris Ranger 500 EFI 2017 Polaris Ranger 900 XP 2017 Polaris Sportsman 570 2017 Polaris Sportsman 570 Touring 2017 Polaris Ranger 570 EFI 2017 Polaris Ranger Crew 570 EFI 2017 Polaris Ranger Crew 900 2017 Polaris Sportsman 570 ACE 2017 Polaris Sportsman X2 570 2017 Polaris Scrambler 850 2017 Polaris ACE 570 EFI 2017 Polaris Ranger 500 ETX EFI 2017 Polaris Ranger 1000 XP 2017 Polaris ACE 500 2017 Polaris ACE 900 2017 Polaris Ranger 900 2017 Polaris Sportsman 450 HO 2017 Polaris Sportsman 1000 XP 2017 Polaris Scrambler 1000 XP 2017 Polaris Sportsman 850 High Lifter 2017 Polaris Sportsman 850 Touring SP 2017 Polaris RZR 4 900 2017 Polaris General 4 1000 2017 Polaris General 1000 2017 Polaris Ranger Crew 1000 XP 2017 Polaris Ranger Crew 900 XP 2017 Polaris Sportsman 1000 High Lifter 2017 Polaris Sportsman 1000 XP Tractor 2017 Polaris Sportsman 1000 Touring 2017 Polaris Sportsman 1000 Touring Tractor 2017 Polaris Scrambler 1000 XP Euro 2017 Polaris Sportsman 570 EPS X2 2017 Polaris Sportsman 850 SP 2017 Polaris Sportsman 1000 XP ZUG 2016 Polaris RZR 570 EFI 2016 Polaris RZR 1000 XP 2016 Polaris RZR 900 2016 Polaris RZR 4 1000 XP 2016 Polaris RZR 1000 2016 Polaris RZR 4 900 XP Turbo 2016 Polaris RZR 900 XP Turbo 2016 Polaris Ranger 900 XP 2016 Polaris Sportsman 570 2016 Polaris Sportsman 570 Touring 2016 Polaris Ranger 570 EFI 2016 Polaris Ranger Crew 570 EFI 2016 Polaris Ranger Crew 900 2016 Polaris RZR 570 EPS 2016 Polaris Sportsman 570 ACE 2016 Polaris Sportsman X2 570 2016 Polaris ACE 325 EFI L/C 2016 Polaris ACE 570 EFI 2016 Polaris Ranger 325 ETX EFI 2016 Polaris ACE 900 2016 Polaris Sportsman 450 HO 2016 Polaris Scrambler 1000 XP 2016 Polaris RZR 4 900 2016 Polaris General 1000 2016 Polaris Sportsman 1000 Touring Tractor 2016 Polaris Sportsman 570 EPS X2 2016 Polaris Ranger 570 XP 2016 Polaris M1400 2016 Polaris Sportsman 1000 XP ZUG 2015 Polaris Hawkeye 325 2015 Polaris Sportsman 325 ETX 2015 Polaris RZR 570 EFI 2015 Polaris RZR 900 2015 Polaris RZR 4 1000 XP 2015 Polaris Ranger 900 XP 2015 Polaris Sportsman 570 2015 Polaris Sportsman 570 Touring 2015 Polaris Ranger 570 EFI 2015 Polaris Ranger Crew 570 EFI 2015 Polaris Ranger Crew 900 2015 Polaris RZR 570 EPS 2015 Polaris Sportsman 570 ACE 2015 Polaris Sportsman X2 570 2015 Polaris Sportsman 325 ACE 2015 Polaris RZR 1000 XP INTL 2015 Polaris Ranger 325 ETX EFI 2015 Polaris RZR 4 900 2015 Polaris Sportsman 570 EFI UTE 2015 Polaris Sportsman 570 EPS X2 (Europe) 2015 Polaris Sportsman 570 EPS X2 2015 Polaris M1400 2015 Polaris Ranger Crew 570 Full Size 2015 Polaris Sportsman 570 Touring EPS 2014 Polaris RZR 570 EFI 2014 Polaris RZR 1000 XP 2014 Polaris RZR 900 2014 Polaris RZR 4 1000 XP 2014 Polaris Ranger 900 XP 2014 Polaris Sportsman 570 2014 Polaris Sportsman 570 Touring 2014 Polaris Ranger 570 EFI 2014 Polaris Ranger Crew 570 EFI 2014 Polaris Ranger Crew 900 2014 Polaris Sportsman 325 ACE 2014 Polaris RZR 1000 XP INTL 2014 Polaris RZR 900 INTL 2014 Polaris RZR 4 900 INTL 2014 Polaris RZR 4 900 2014 Polaris Sportsman 570 EFI UTE 2014 Polaris Sportsman 570 EFI 2013 Polaris RZR 570 EFI 2013 Polaris RZR 4 900 XP 2013 Polaris Ranger 900 XP 2013 Polaris RZR 570 EPS 2013 Polaris RZR 4 900 INTL 2013 Polaris RZR 900 XP 2012 Polaris RZR 570 EFI 2012 Polaris RZR 4 900 XP 2012 Polaris RZR 900 XP
